Tennisanlagen Zubehör

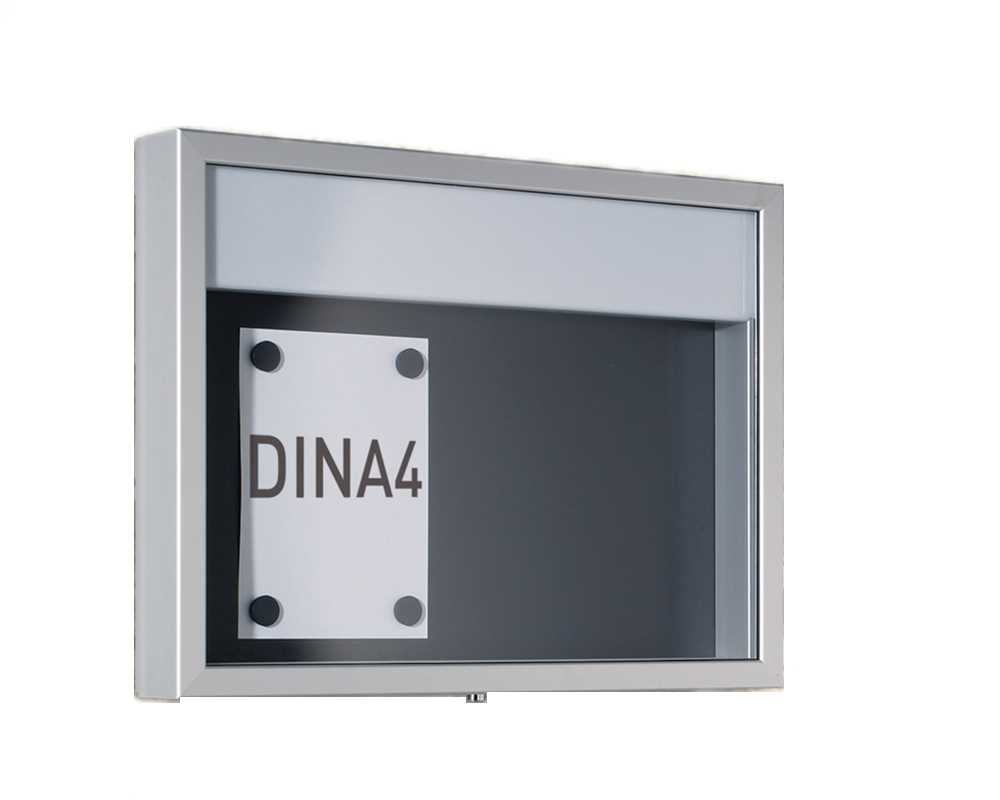

Information Board TMD 95
Suitable for outside and inside usage, absolutely weatherproof design. Made of top grade, torsion-free aluminum sections, depth 95 mm. The
surface is anodized in matt silver (E6-EV1). State-of-the-art manufacturing processes and advanced processing machines have been combined with
technical know-how to provide a solid basis for this quality product.
Basic frame
Very robust aluminum base frame with in-set steel back wall with corrosion-resistant coating.
Front frame
Aluminum front frame made of torsion-free multi-chamber aluminum sections with integrated weatherproof rubber seal and break-proof acrylic glass pane.
Front frame fitting
Special interlocking sections across the whole width so that no hinges are required; this provides for greater stability.

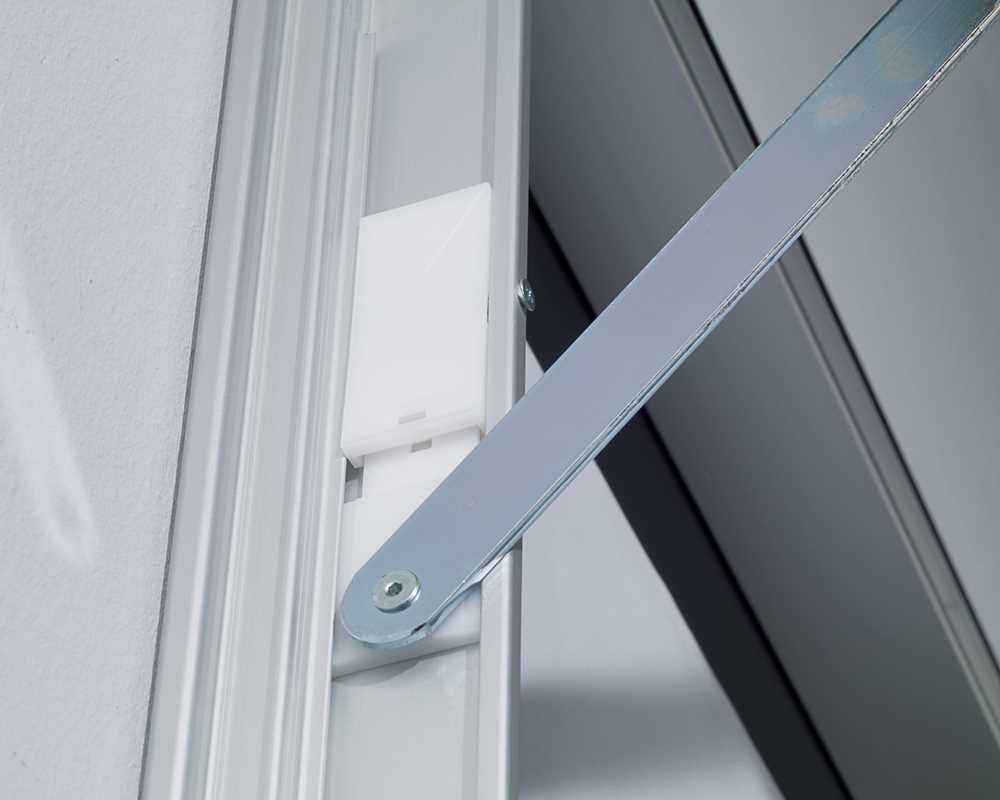

Front frame opening
The front frame opens upwards and is held open by automatically engaging rods. The catch is released by lifting the front frame up again.

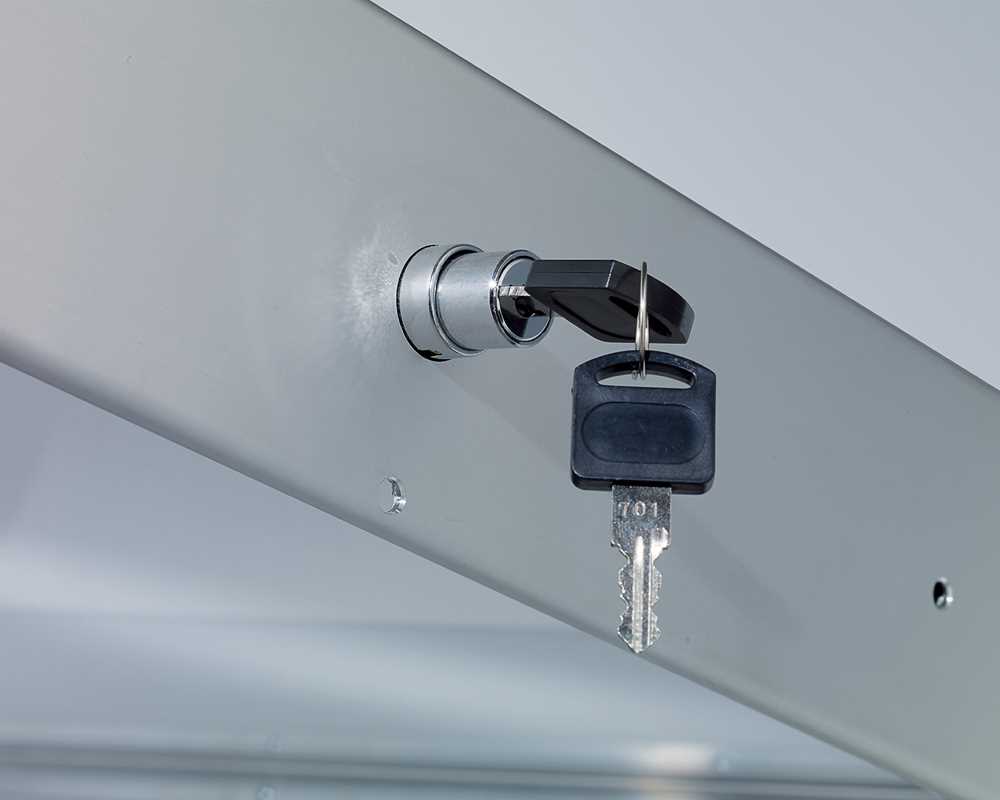

Safety lock
Safety lock located on the bottom edge with two keys. Simple and troublefree operation.
Wall fastening
The information board is fastened to the wall by means of two aluminum section rails; the board is then inserted into the rails and fixed by two
screws at the bottom. All fastening elements are accommodated in the frame sections. it is not possible to dismount the information board when
it is in closed state. This provides a high level of theft security.
| Measuring | ||
| Width x height x depth 95 mm | mm | 700 x 525 |
| Visible surface without lettering strip | mm | 640 x 465 |
| incl. magnets (Ø 30 mm) | piece | 20 |
| Weight | kg | 33 |
| For outdoor and indoor usage. Anodized (E6-EV1) aluminum housing with black magnetic board, safety lock with two keys, wall fixing set | Art.No. | 41920 |
